How to Use BridenBot
-Install Java from (www.java.com)
-Download the BridenBot software to a folder on your computer
-Create a new text file in the folder and name it Bridenstructions.txt
-Add some of the instructions below to the text file

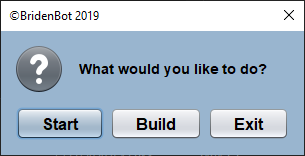

-Double click on BridenBot to begin the automation
Available Instructions:
-Pause for a number of seconds: PAUSE(10)
-Double click mouse at coordinates: DCLICK(100,100)
-Left click mouse at coordinates: LCLICK(100,100)
-Right click mouse at coordinates: RCLICK(100,100)
-Move mouse to coordinates: MOUSETO(100,100)
-Move mouse in a direction: MOUSEMOVE(10,-10)
-Reset instructions to a designated point: RESET(POINT1)
-Designate a point for instructions to restart from: SET(POINT1)
-Resets instructions if a word or color mismatch is detected: CHECK(hello, POINT1)
-Opens a webpage: BROWSE(www.bridenbot.com)
-Opens a file: OPENFILE(C:\samplefile.xlsx)
-Types a phrase: TYPE(hello how are you?)
-Records a selected action to the system clipboard: RECORD()
-Scans the entire screen for a unique image: SCAN(???,1)
-Turns off Demo mode: ACTIVATE(yourlicensekey)
-Stops BridenBot: STOP()
-Presses a key: PRESS(ENTER,10)
-Presses a combination of keys: COMBO(ALT,18+9)
Tips for using BridenBot:
-Make frequent use of CHECK to verify that you are on the correct screen before taking action.
-Set up a RECORD loop by putting it between SET and RESET to record multiple actions in a row.
-Record an action by placing the mouse cursor along the top edge of the screen.
-Stop BridenBot by placing the mouse cursor along the left edge of the screen.
-Wake BridenBot up by placing the mouse cursor in the upper left corner of the screen.
-If your computer is slow add a short PAUSE before taking the next action.
-Make sure the scale of your screen is set to 100% otherwise mouse coordinates may be incorrect.
-Colors may change slightly with window size. Keep window sizing consistent when using SCAN.
-Improperly formatted or blank instructions will cause BridenBot to exit and close.
-Place an "X" before an instruction to cause BridenBot to skip over it.
-Add a short note after an instruction in order to help remember what it was supposed to do.
-Make use of a browser's "find on page" functionality to automatically find and select a link or button.
-Not every key can be typed or pressed directly. Use COMBO for certain key presses.
-Avoid creating an inescapable loop by using PAUSE to allow for time to move the mouse if necessary.
-Be patient. Planning out every click in a process takes careful thought and time.
-Add a short note after an instruction in order to help remember what it was supposed to do.
-Make use of a browser's "find on page" functionality to automatically find and select a link or button.
-Not every key can be typed or pressed directly. Use COMBO for certain key presses.
-Avoid creating an inescapable loop by using PAUSE to allow for time to move the mouse if necessary.
-Be patient. Planning out every click in a process takes careful thought and time.
See also:
Computer Vision with BridenBot
Key Press Reference List:
PRESS(0...9,48...57)
PRESS(A...Z,65...90)
PRESS(F1...F12,112...123)
PRESS(ADD,107)
PRESS(ALT,18)
PRESS(BACKQUOTE,192)
PRESS(BACKSLASH,92)
PRESS(BACKSPACE,8)
PRESS(BRACELEFT,161)
PRESS(BRACERIGHT,162)
PRESS(CANCEL,3)
PRESS(CAPS,20)
PRESS(COMMA,44)
PRESS(CONTROL,17)
PRESS(DECIMAL,110)
PRESS(DELETE,127)
PRESS(DIVIDE,111)
PRESS(DOWN,40)
PRESS(END,35)
PRESS(ENTER,10)
PRESS(EQUALS,61)
PRESS(ESCAPE,27)
PRESS(HELP,156)
PRESS(HOME,36)
PRESS(INSERT,155)
PRESS(LEFT,37)
PRESS(MINUS,45)
PRESS(MULTIPLY,106)
PRESS(NUM,144)
PRESS(NUMBER,520)
PRESS(PAGEDOWN,34)
PRESS(PAGEUP,33)
PRESS(PAUSE,19)
PRESS(PERIOD,46)
PRESS(PRINTSCREEN,154)
PRESS(QUOTE,222)
PRESS(RIGHT,39)
PRESS(SCROLL,145)
PRESS(SEMICOLON,59)
PRESS(SHIFT,16)
PRESS(SLASH,47)
PRESS(SPACE,32)
PRESS(SUBTRACT,109)
PRESS(TAB,9)
PRESS(UP,38)
PRESS(WINDOWS,524)
References:
https://docs.oracle.com/en/java/javase/12/docs/api/constant-values.html
